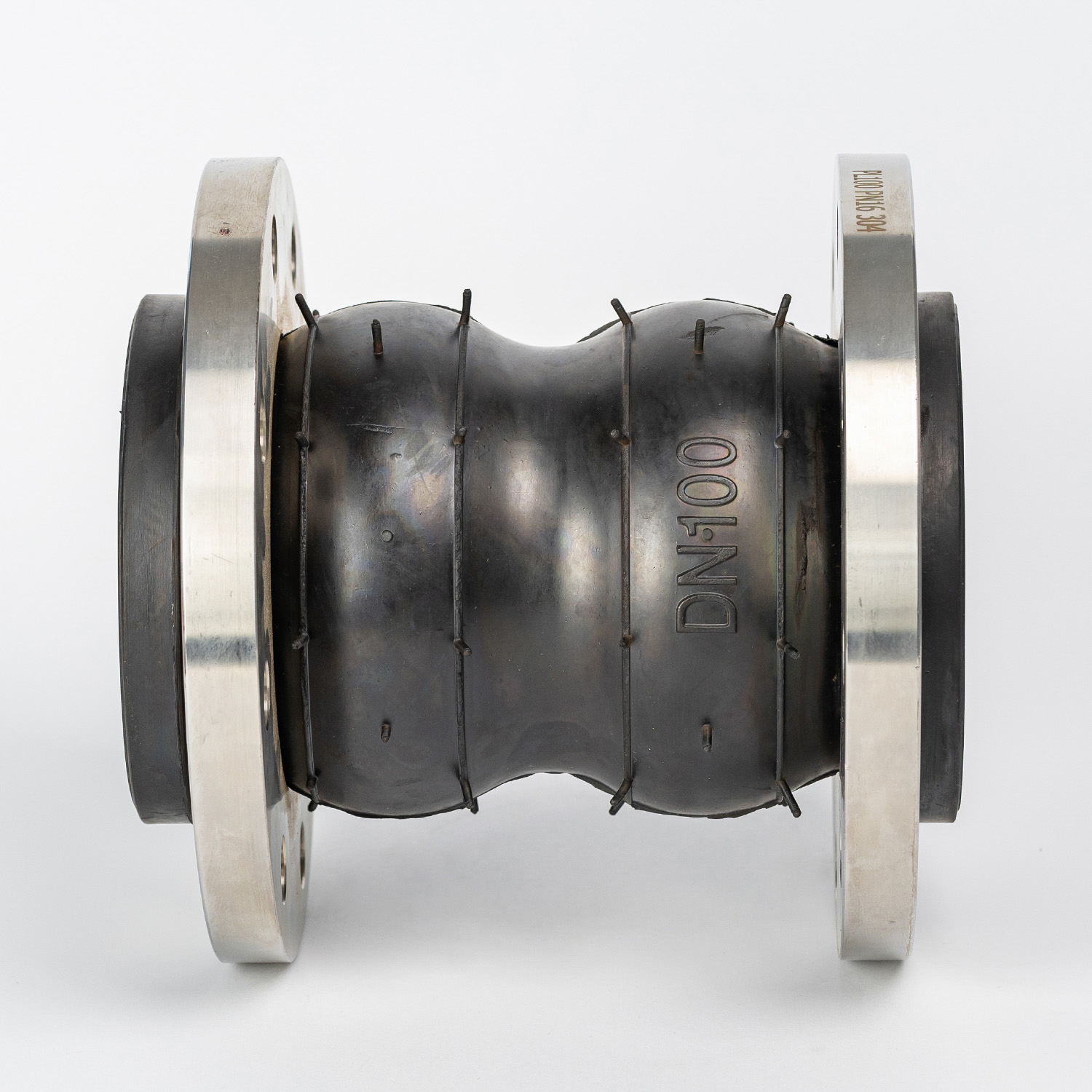

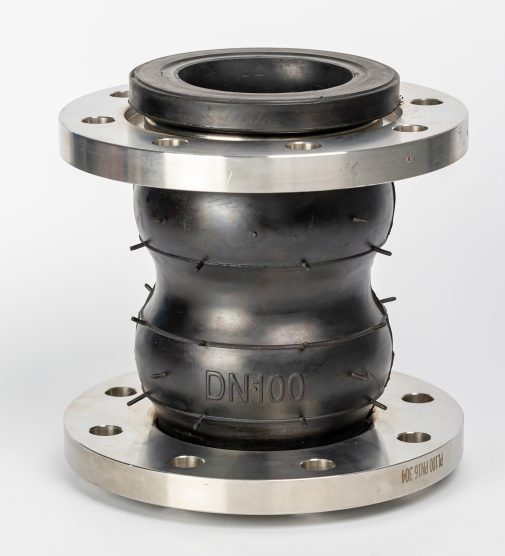

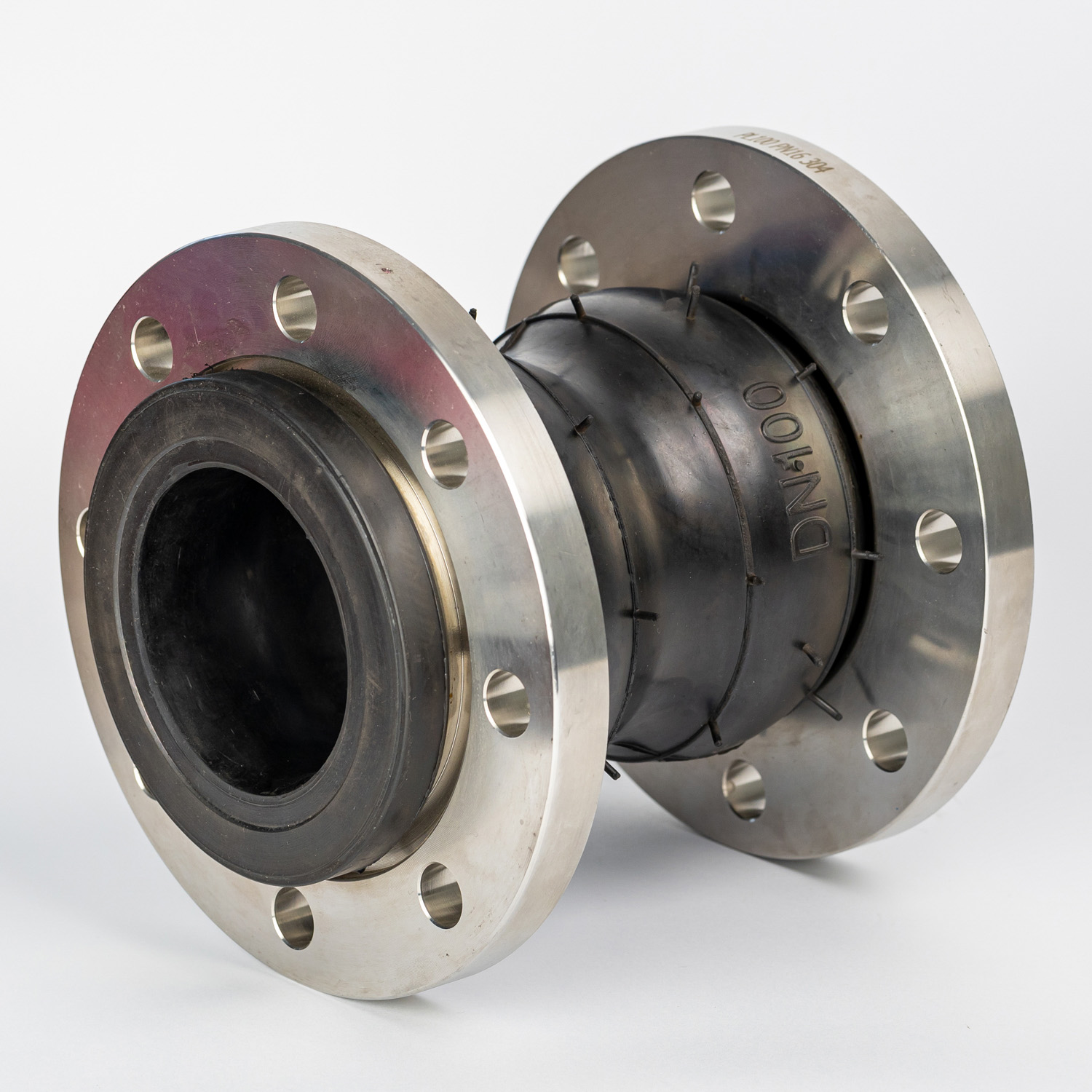

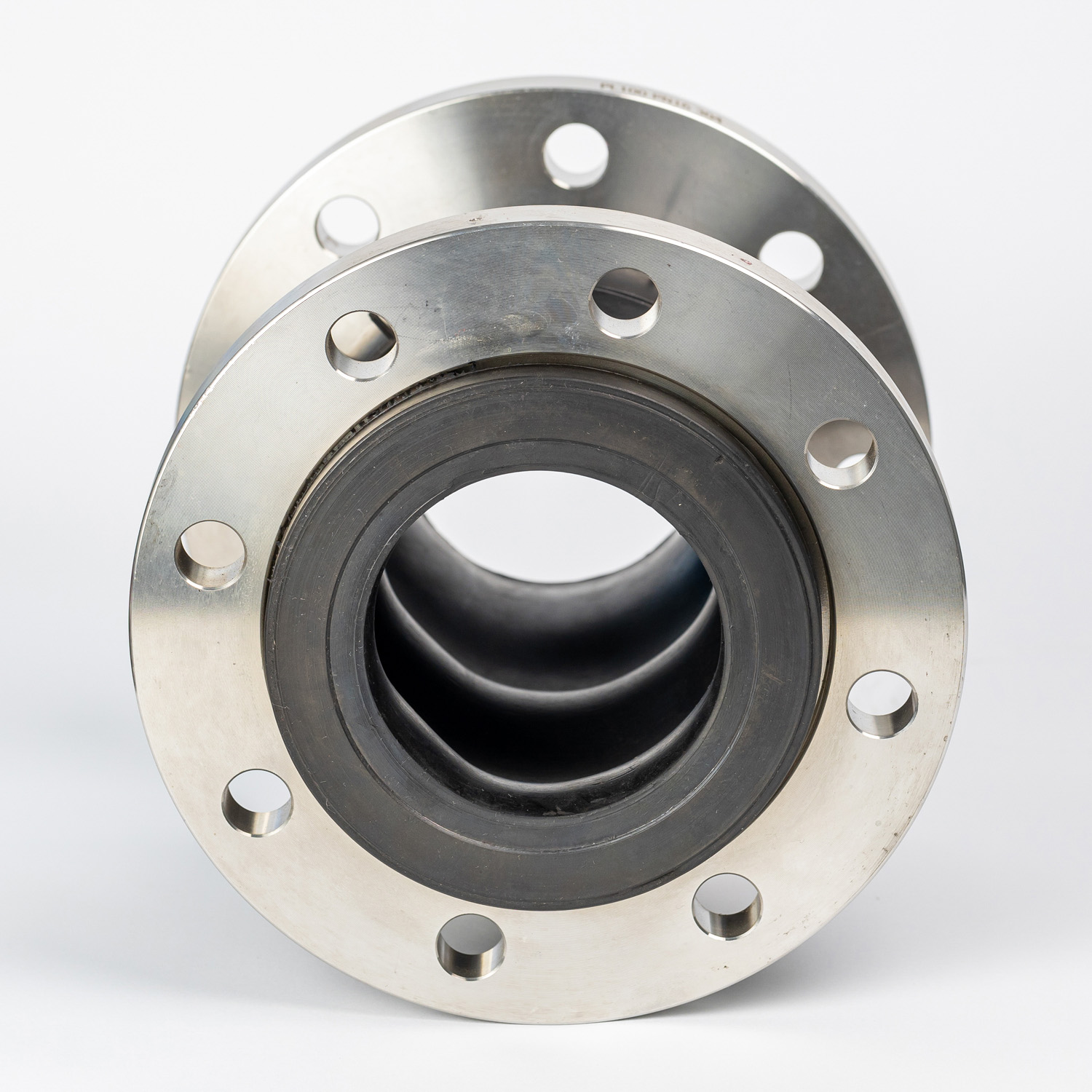

Customizable stainless steel flange connection double sphere rubber expansion joint
Sizes
DN40 to DN600
Pressure
PN6~PN40
Temperature
-15 ~ 80℃
Flange Standard
DIN, ANSI, JIS etc
Material of Flange
Stainless Steel 304, 316, 321 etc
Material of Rubber

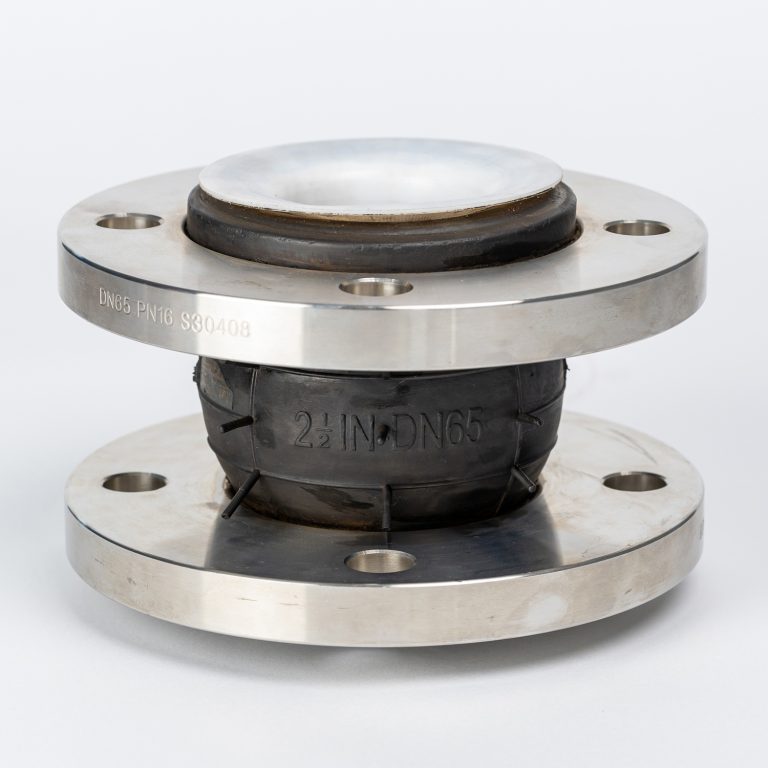

NR, NBR, CR, EPDM, PTFE etc.
Overview
Double Ball Rubber Joint, is mainly the use of rubber unique properties, such as high flexibility, high air tightness, chemical resistance and radiation resistance, high strength, strong cold stability bias ply polyester composite Hou contrast, high pressure, high temperature molded cross-linked internal high density, can bear high pressure, high elastic deformation effect.
Constructed of neoprene and nylon (other materials are available see charts below), the spherical shape allows pressure to exert itself uniformly in all directions, thus reducing the force exerted on pipe lines and equipment. Bias-ply tire cord provides strength, a high safety factor, and low force to move. Precision molding provides a dense, uniform carcass.
Double Ball Expansion Rubber Joints is from the inside layer, enhanced multi-layer plastic scraper nylon cord, rubber outer layer composite tubes. Depending on the medium used rubber material is different, there are natural rubber, styrene-butadiene rubber, butyl rubber, nitrile rubber, EPDM rubber, neoprene, silicone rubber, fluorine rubber and so on. Respectively, with heat, acid, alkali, corrosion resistance, abrasion resistance, oil and other functions.
Specification
| No. | Part | Material | ||||
| 1 | Body | (NR)、(CR)、(IIR)、(NBR)、(FKM)、(EPDM) | ||||
| 2 | Inner & Outer Rubber | （NR） （CR）（IIR） （NBR）（FKM）（EPDM）（PTFE） | ||||
| 3 | Body Carcass | Nylon cord fabric | ||||
| 4 | Reinforcing Ring | Multi-strand coppering steel wire | ||||
| 5 | Flange | Cast and forged carbon steel(Q235)、Stainless steel(201、304、316、321)、Plastic(CPVC、PVDF、PPH、UPVC、RPP) | ||||
Technical parameters
| Item |Medol | KST-F-1 | KST-F-2 | KST-F-3 | 1. If media is oil, acid or alkali. 2. If special requirements for working temperature 3. If OEM orders with drawings or samples 4. Please Inform us about above when ordering |
| MpaWoring pressure | 1.0(10) | 1.6(16) | 2.5(25) | |
| Mpa Burst Pressure | 2.0(20) | 3.0(30) | 4.5(45) | |
| Kpa Vacuum | 53.3(400) | 86.7(650) | 100(750) | |
| Applicable Temperature | -20℃~+115℃（-30℃~+250℃）-20℃~+115℃(-30℃~+250℃ under special conditions) | |||
| Applicable Medium | Air, compressed air, water, sea water, oil, acid, alkali, etc. | |||
| Note: the materials of main parts are the same with those of KXT type | ||||
| DN Nominal Diameter （mm） | Axial displacement（mm） | length（mm） | Haorizontal isplacement （mm） | Angular deflection(a1+a2)° | ||
| mm | inch | elongation | compression | |||
| 40 | 1.5 | 10 | 20 | 165 | 20 | 30° |
| 50 | 2 | 10 | 20 | 165 | 20 | 30° |
| 65 | 2.5 | 10 | 20 | 175 | 20 | 30° |
| 80 | 3 | 10 | 20 | 175 | 20 | 30° |
| 100 | 4 | 15 | 30 | 225 | 25 | 30° |
| 125 | 5 | 15 | 30 | 225 | 25 | 30° |
| 150 | 6 | 15 | 30 | 225 | 25 | 30° |
| 200 | 8 | 20 | 40 | 325 | 30 | 30° |
| 250 | 10 | 20 | 40 | 325 | 30 | 30° |
| 300 | 12 | 20 | 40 | 325 | 30 | 30° |
| 350 | 14 | 20 | 40 | 325 | 30 | 30° |
| 400 | 16 | 20 | 40 | 340-400 | 30 | 30° |
| 450 | 18 | 25 | 45 | 340-400 | 30 | 30° |
| 500 | 20 | 25 | 45 | 340-400 | 30 | 30° |
| 600 | 24 | 25 | 45 | 340-400 | 30 | 30° |

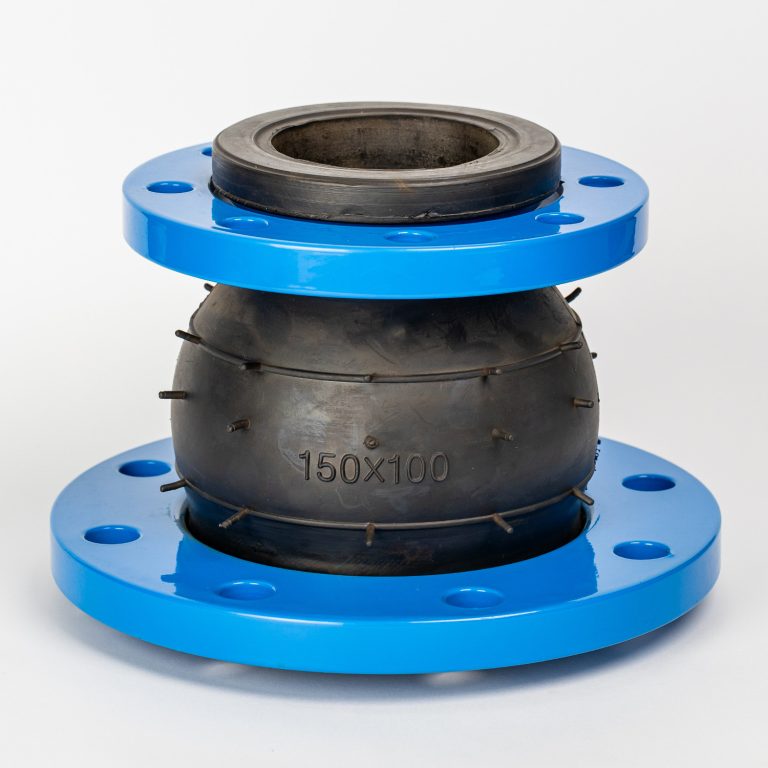

| Note: 1. Special requirements can be made according to user drawings. The sphere can be made of nitrile rubber, EPDM, chloroprene rubber and other materials. 2. For suspended water supply, use products above DN200. The pipeline must have a fixed support or fixed bracket, otherwise the product should be installed with an anti-pull-off device. 3. If the user uses a rubber joint, the corresponding flange should be a valve flange. | ||||||
