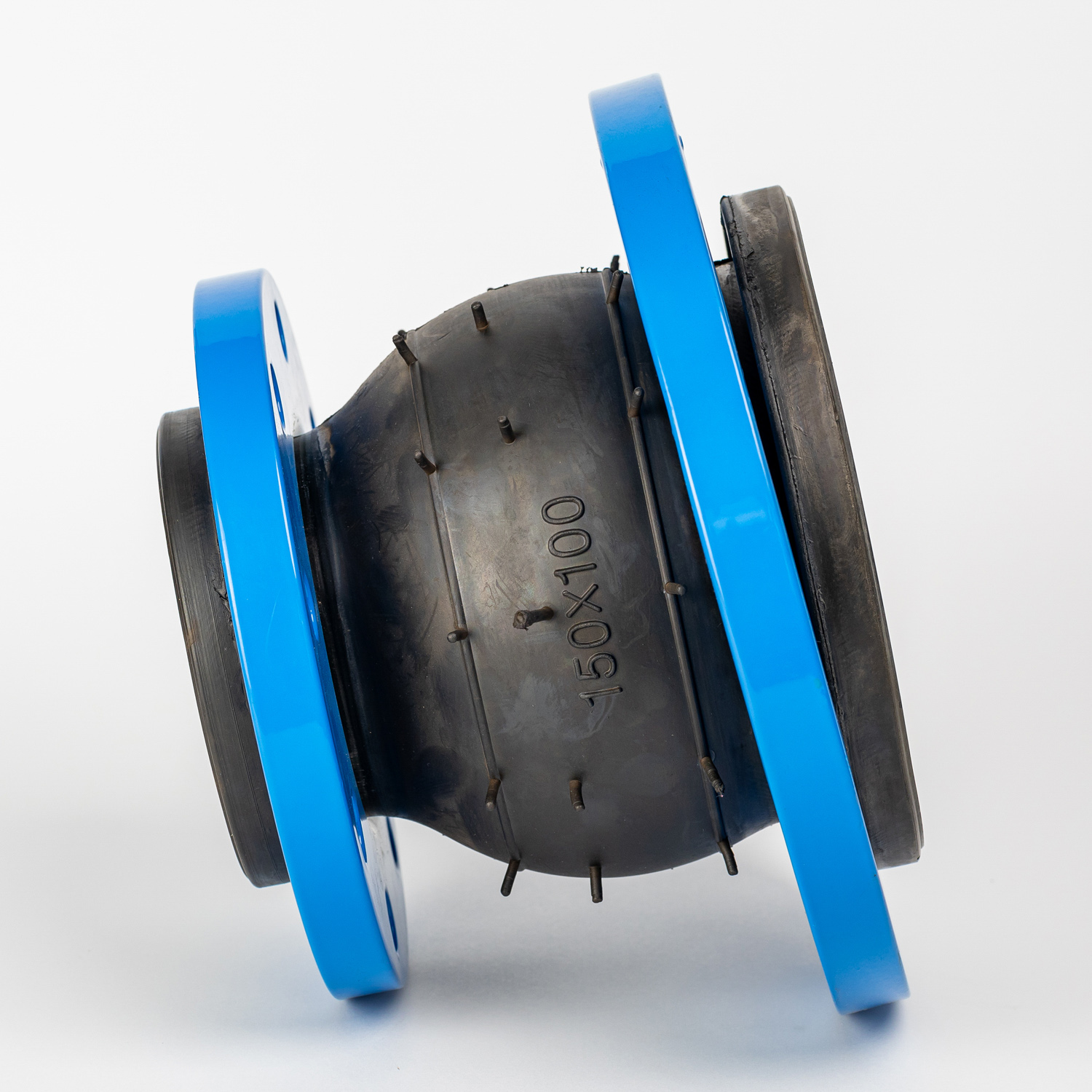

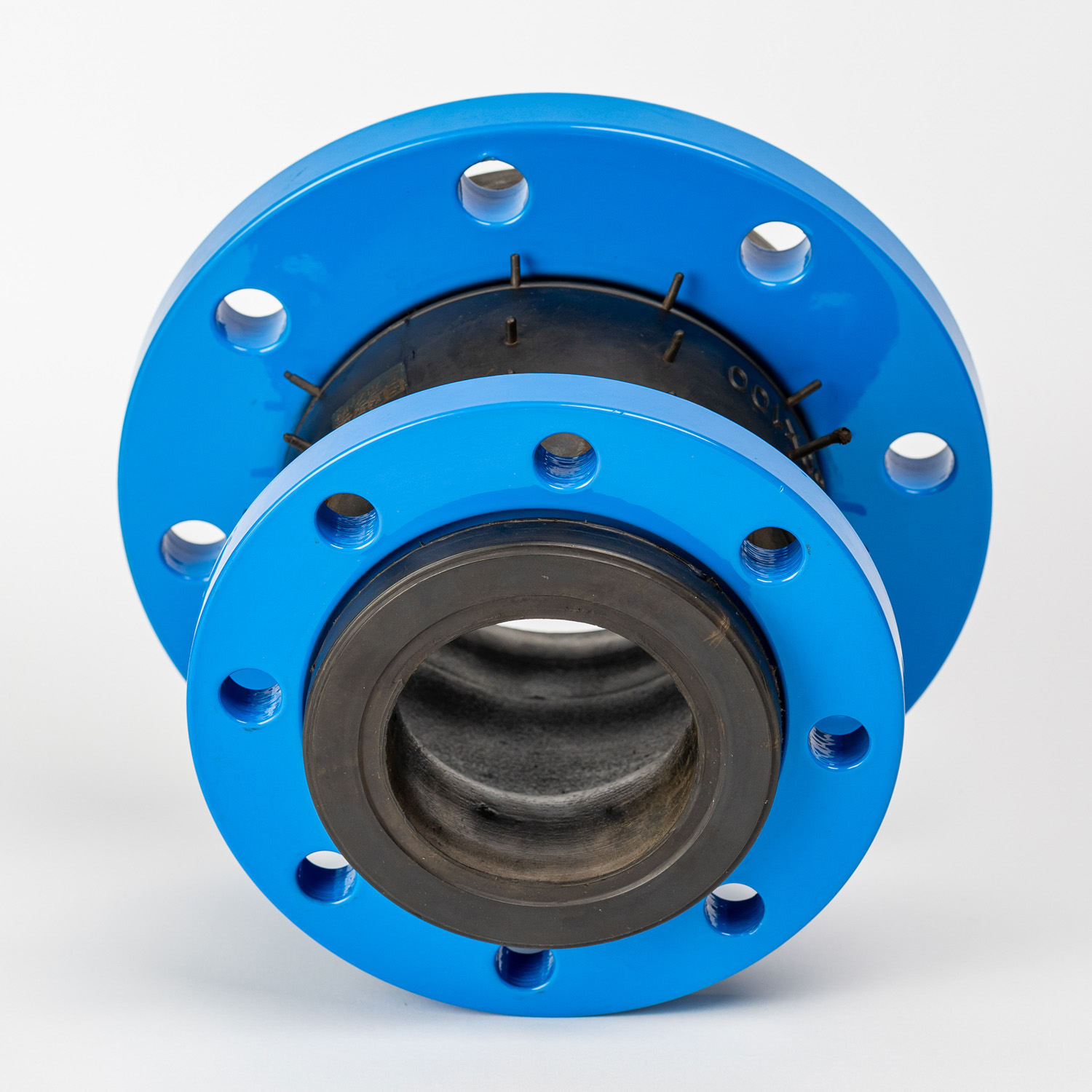

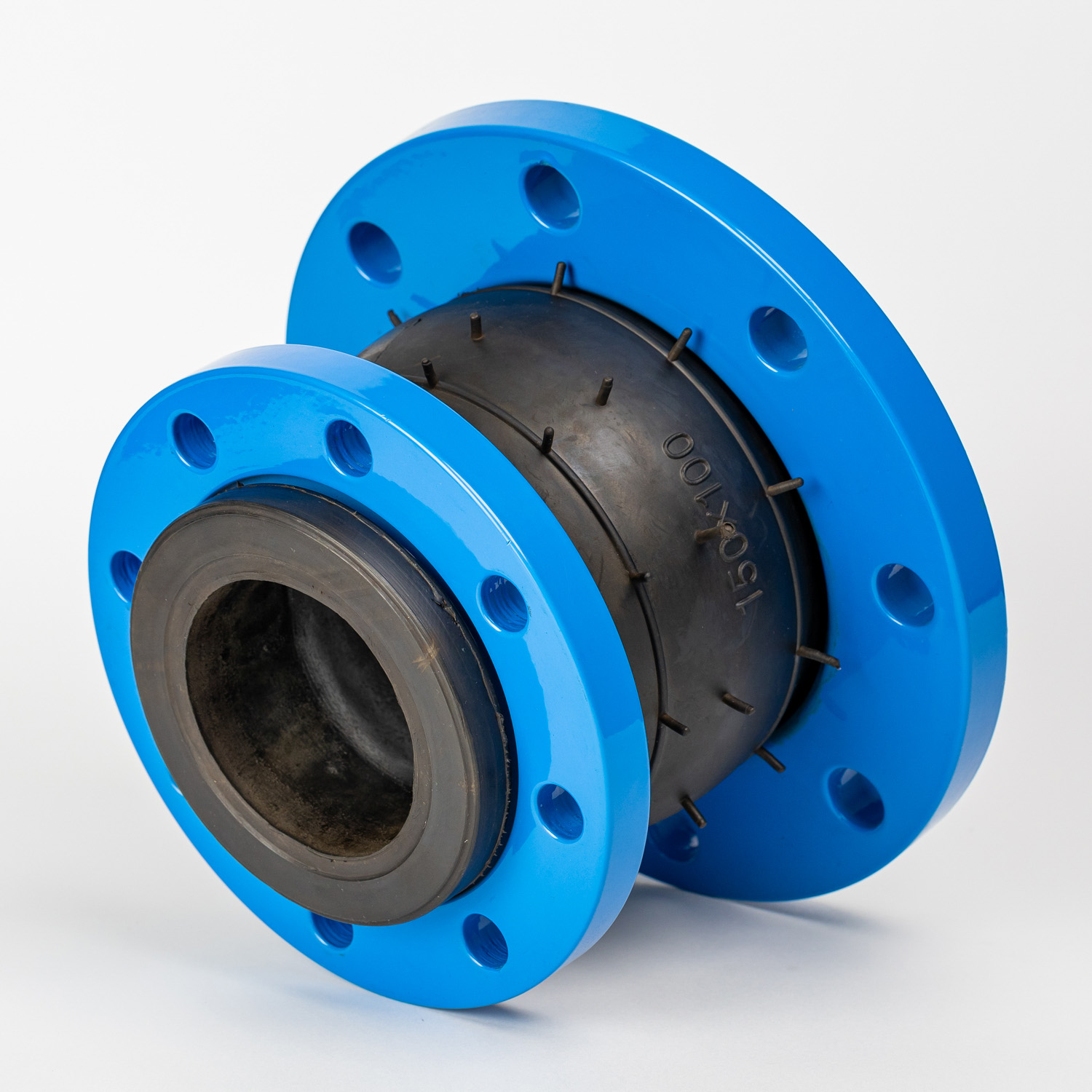

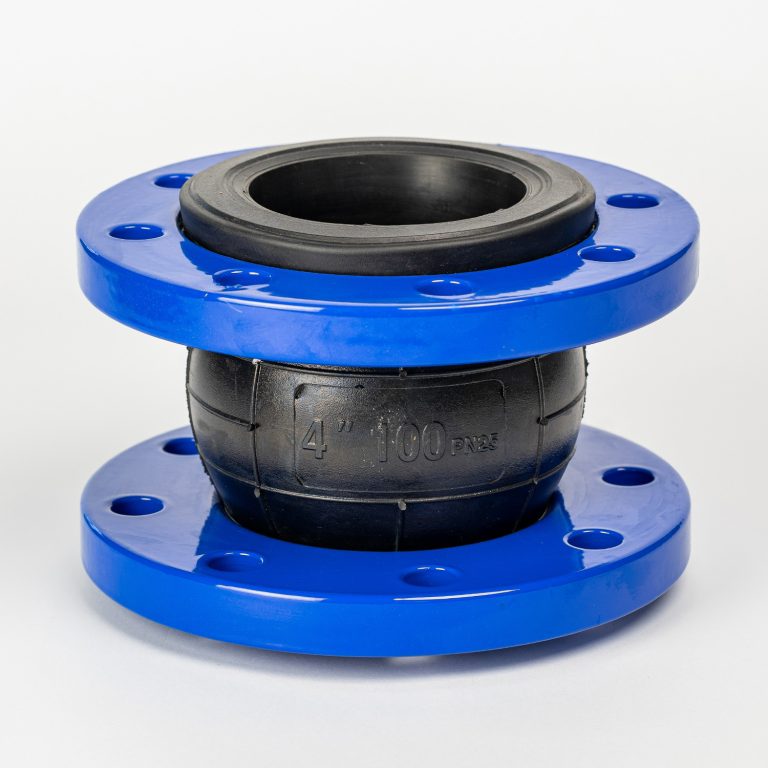

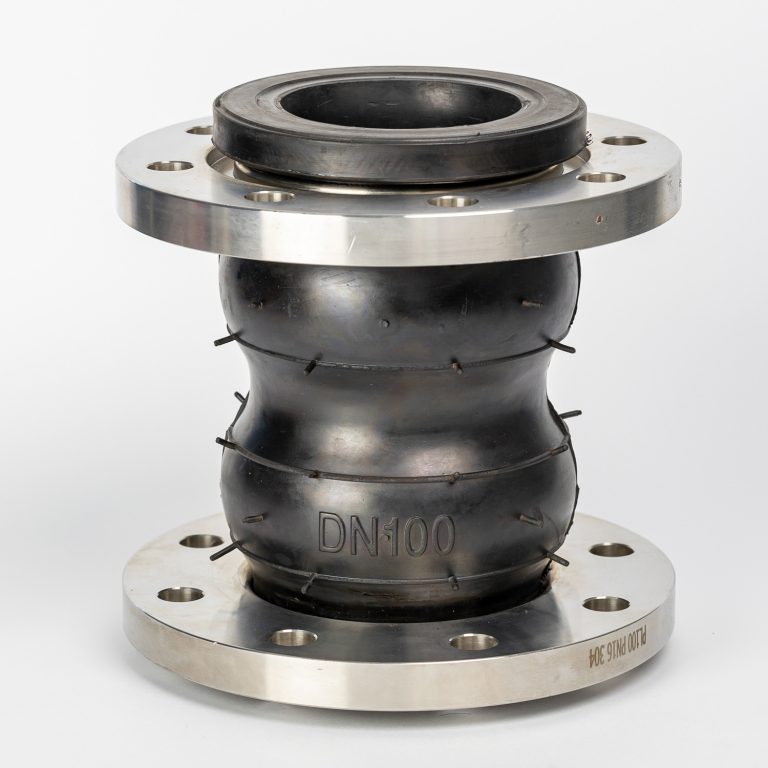

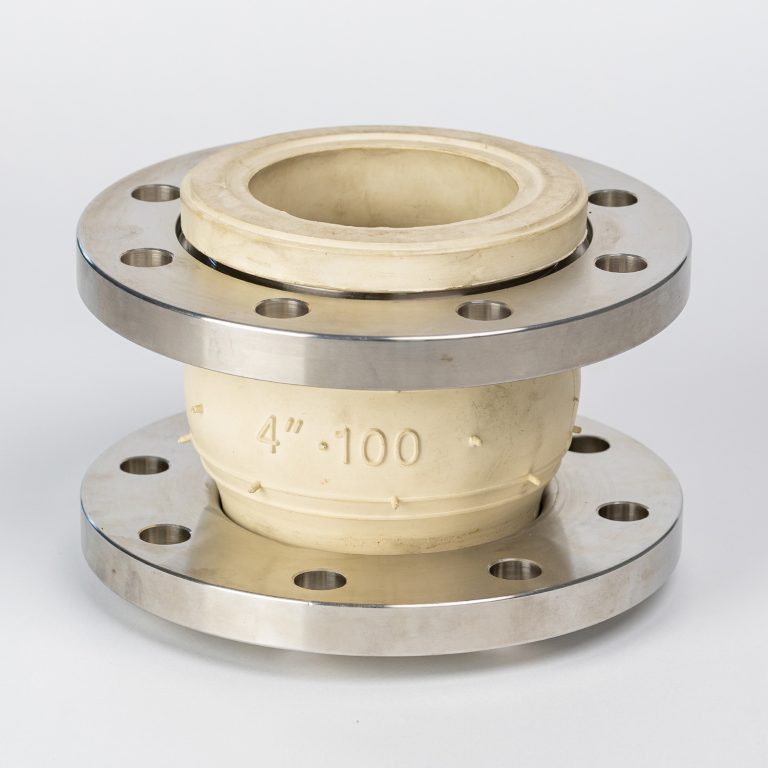

Carbon Steel Flanged Expansion Concentric Flexible Reducing Rubber expansion Joint
Sizes
DN40 to DN600
Pressure
PN6~PN40
Temperature
-15 ~ 80℃
Flange Standard
DIN, ANSI, JIS etc
Material of Flange
Stainless Steel 304, 316, 321 etc
Material of Rubber
NR, NBR, CR, EPDM, PTFE etc.
Overview
Elastomeric expansion joints, unlike piping expansion joints of other materials, can be manufactured with concentric or eccentric tapers, transitioning from a larger diameter on one side and smaller on the other. These expansion joints are normally hand-built on a mandrel and not of the molded variety. The low volume requirements and nonstandard lengths do not support the high cost of mold tooling.
Before moving forward, it is important to define and clarify the difference between concentric and eccentric tapered reducers:

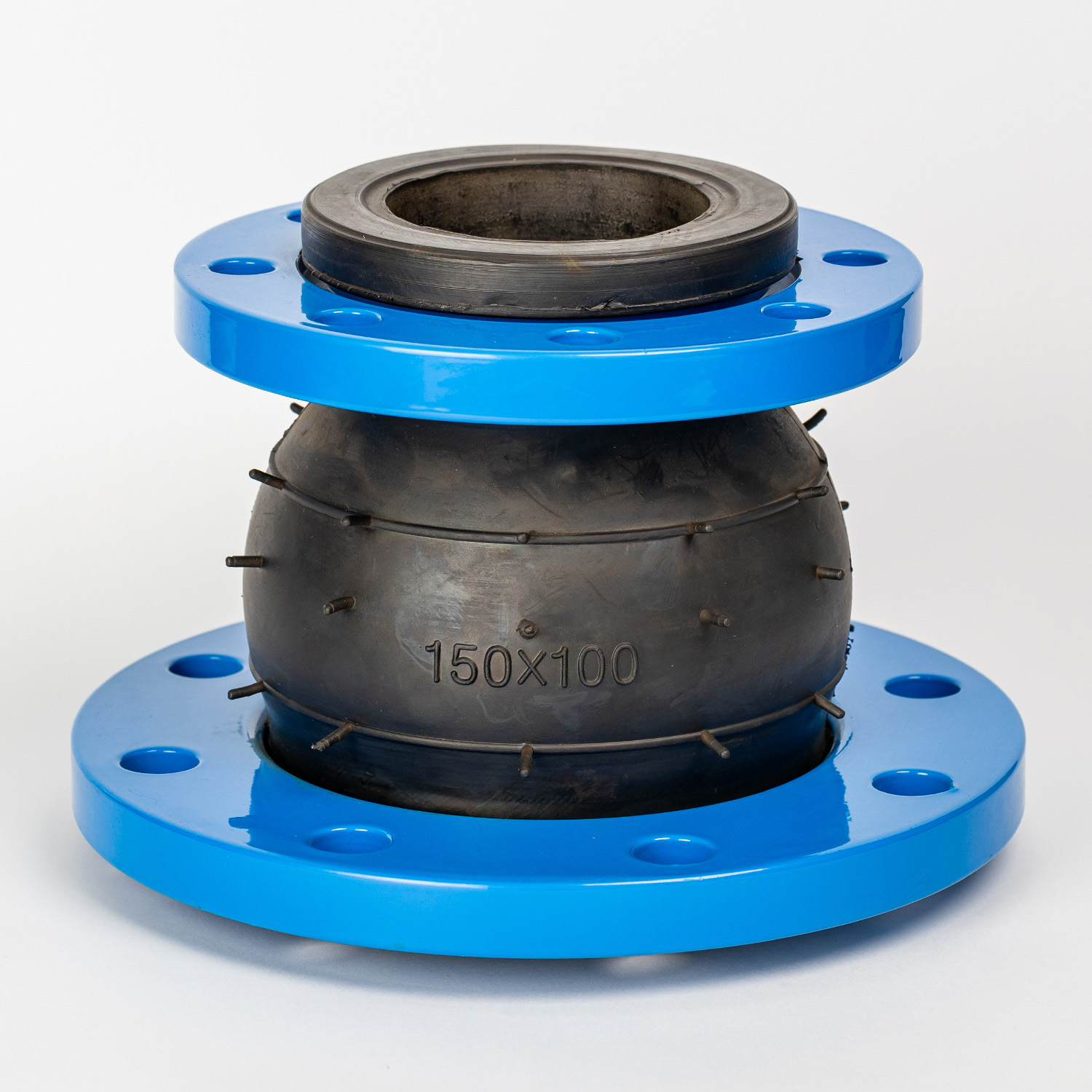

The concentric design is where the center of each flange is concentric or in line with each other

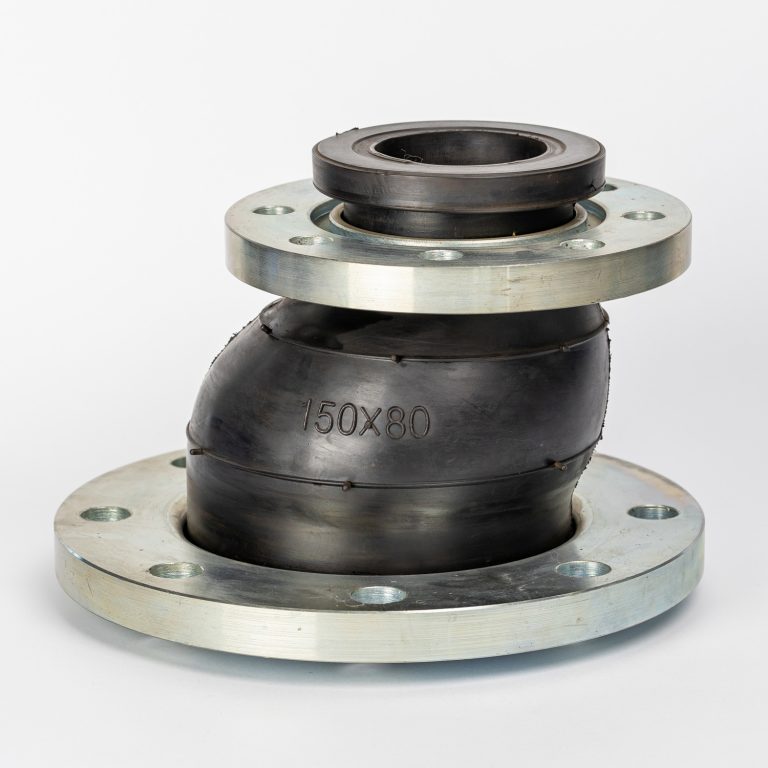

The eccentric design is where the center of each flange is eccentric or offset with each other
Specification
| No. | Part | Material | ||||
| 1 | Body | (NR)、(CR)、(IIR)、(NBR)、(FKM)、(EPDM) | ||||
| 2 | Inner & Outer Rubber | （NR） （CR）（IIR） （NBR）（FKM）（EPDM）（PTFE） | ||||
| 3 | Body Carcass | Nylon cord fabric | ||||
| 4 | Reinforcing Ring | Multi-strand coppering steel wire | ||||
| 5 | Flange | Cast and forged carbon steel(Q235)、Stainless steel(201、304、316、321)、Plastic(CPVC、PVDF、PPH、UPVC、RPP) | ||||
Technical parameters
| Item |Medol | KYT(DN50~300) | KYT(DN350~600) | 1. If media is oil, acid or alkali. 2. If special requirements for working temperature 3. If OEM orders with drawings or samples 4. Please Inform us about above when ordering |
| MpaWoring pressure | 1.0 | 0.6 | |
| Mpa Burst Pressure | 1.8 | 1.5 | |
| Kpa Vacuum | 86.7 | 53.3 | |
| Applicable Temperature | -20℃~+115℃（-30℃~+250℃）-20℃~+115℃(-30℃~+250℃ under special conditions) | ||
| Applicable Medium | Air, compressed air, water, sea water, oil, acid, alkali, etc. | ||
| Note: the materials of main parts are the same with those of KXT type | |||
| DN×DN | length | Axial displacement | Lateral displacement | Deflection Angle | |
| elongation | compression | ||||
| 80×40 | 180 | 20 | 30 | 45 | 35° |
| 80×50 | 180 | 20 | 30 | 45 | 35° |
| 80×65 | 180 | 20 | 30 | 45 | 35° |
| 100×50 | 180 | 20 | 30 | 45 | 35° |
| 100×65 | 180 | 20 | 30 | 45 | 35° |
| 100×80 | 180 | 20 | 30 | 45 | 35° |
| 125×65 | 180 | 20 | 30 | 45 | 35° |
| 125×80 | 200 | 22 | 30 | 40 | 35° |
| 125×100 | 200 | 22 | 30 | 40 | 35° |
| 150×50 | 190 | 20 | 30 | 45 | 35° |
| 150×80 | 190 | 20 | 30 | 45 | 35° |
| 150×100 | 200 | 22 | 30 | 45 | 35° |
| 200×100 | 200 | 22 | 30 | 45 | 35° |
| 200×125 | 200 | 25 | 35 | 40 | 30° |
| 200×150 | 220 | 22 | 30 | 40 | 35° |
| 250×200 | 220 | 25 | 35 | 40 | 30° |
| 300×200 | 220 | 25 | 35 | 40 | 30° |
| 300×250 | 220 | 25 | 35 | 40 | 30° |
| 350×200 | 220 | 25 | 35 | 40 | 30° |
| 350×300 | 220 | 25 | 38 | 35 | 30° |
| 400×350 | 220 | 25 | 38 | 35 | 30° |
| 500×400 | 230 | 28 | 38 | 35 | 26° |
| 600×400 | 240 | 28 | 38 | 35 | 26° |
| 600×500 | 240 | 28 | 38 | 35 | 26° |
| Note: 1. Special requirements can be made according to user drawings. The sphere can be made of nitrile rubber, EPDM, chloroprene rubber and other materials. 2. For suspended water supply, use products above DN200. The pipeline must have a fixed support or fixed bracket, otherwise the product should be installed with an anti-pull-off device. 3. If the user uses a rubber joint, the corresponding flange should be a valve flange. | |||||
