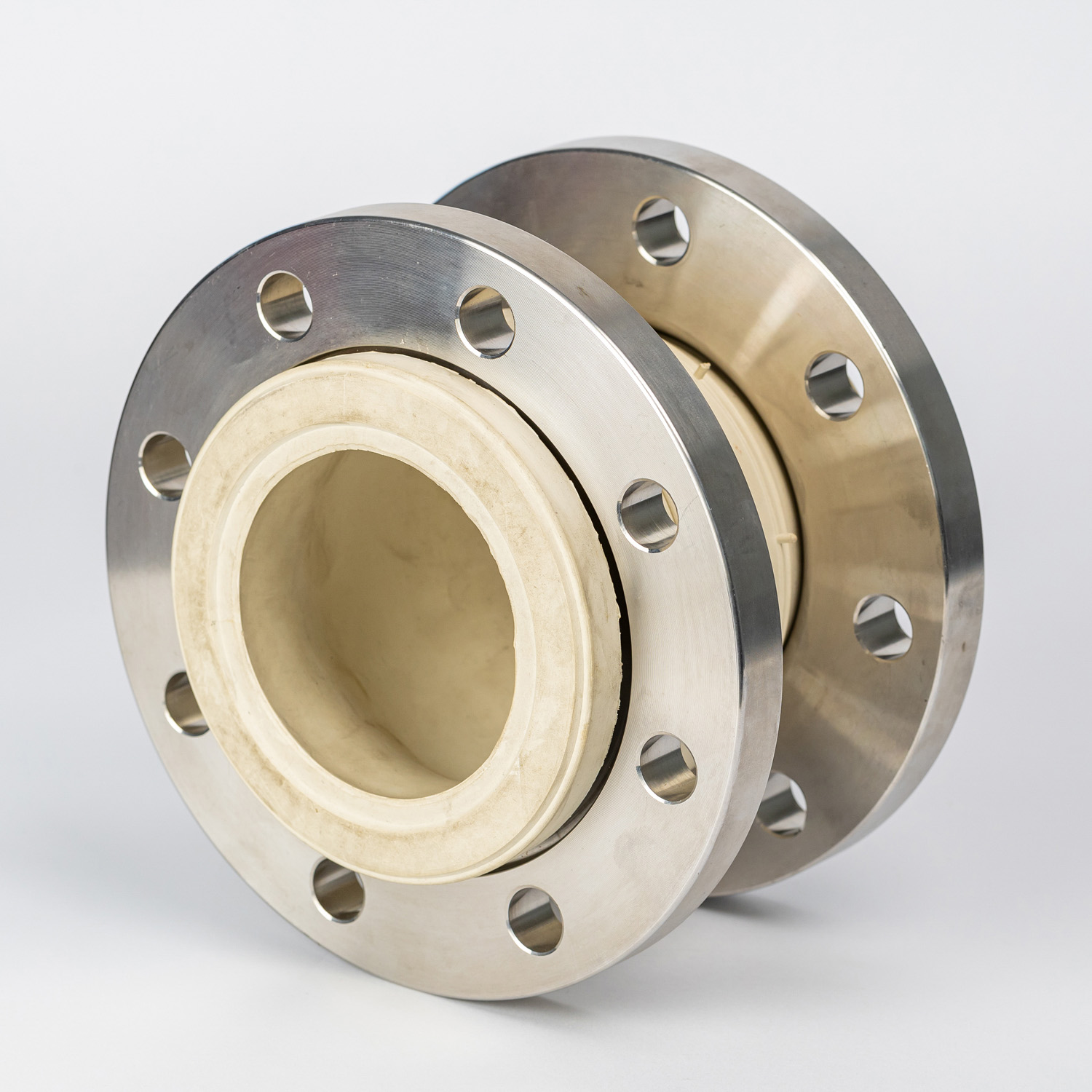

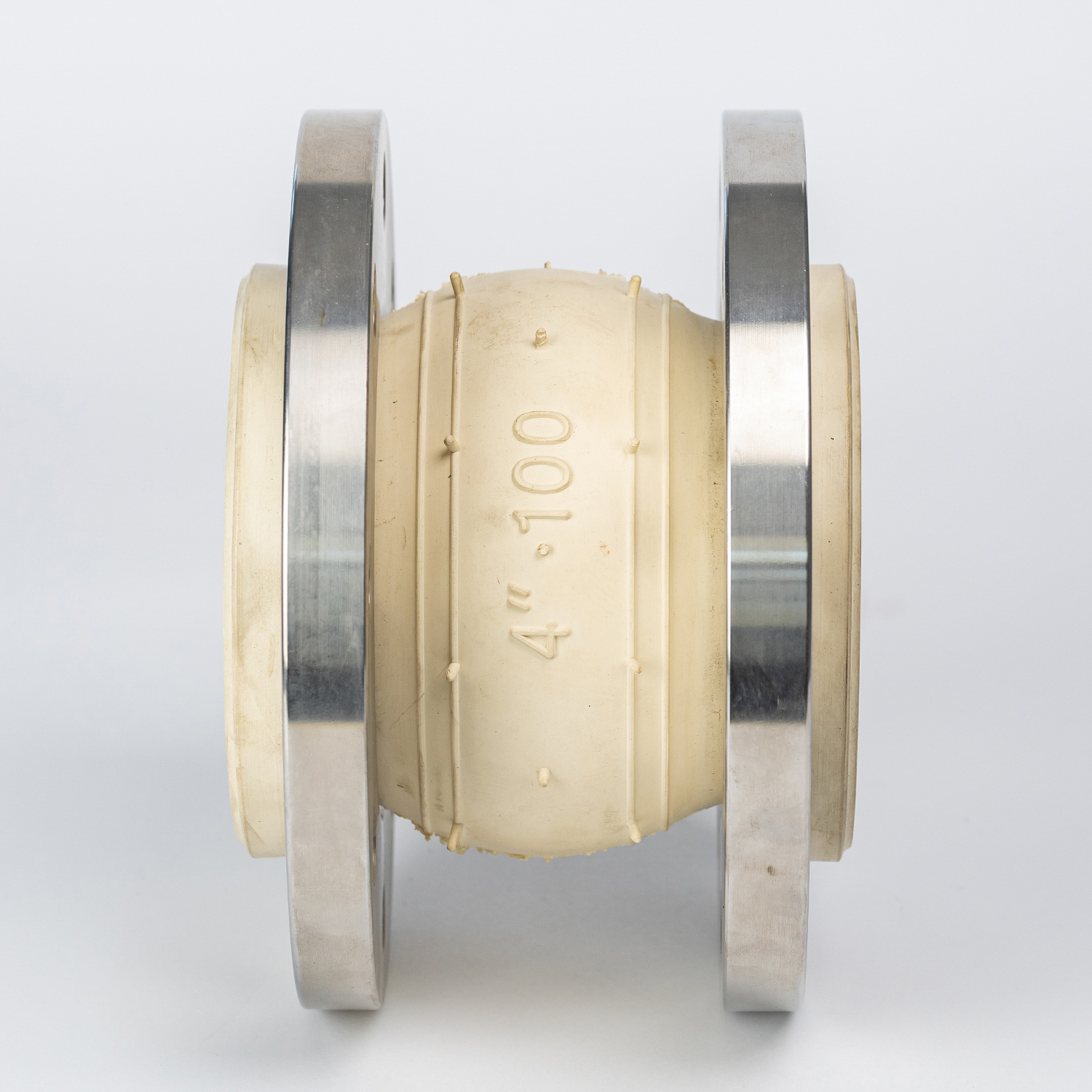

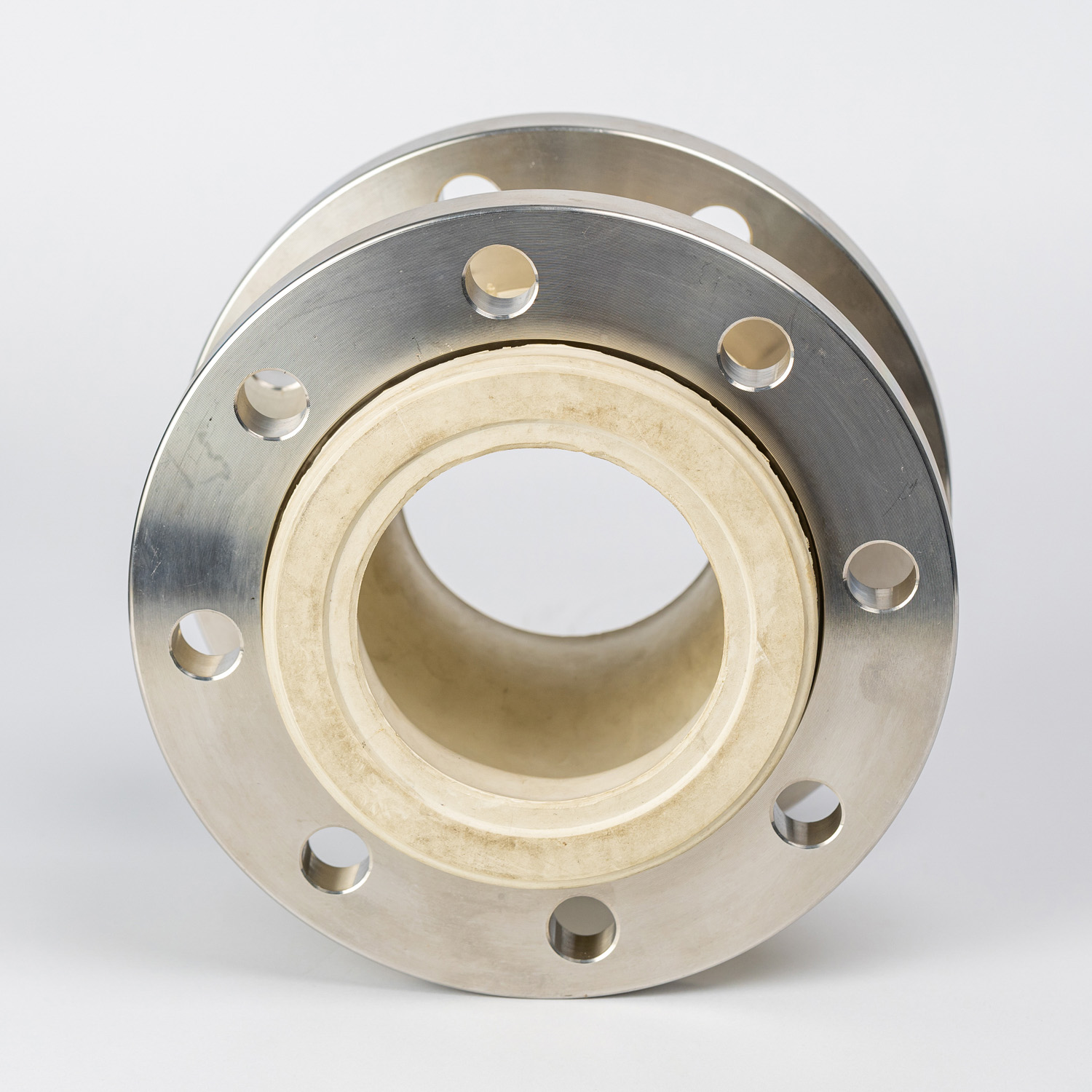

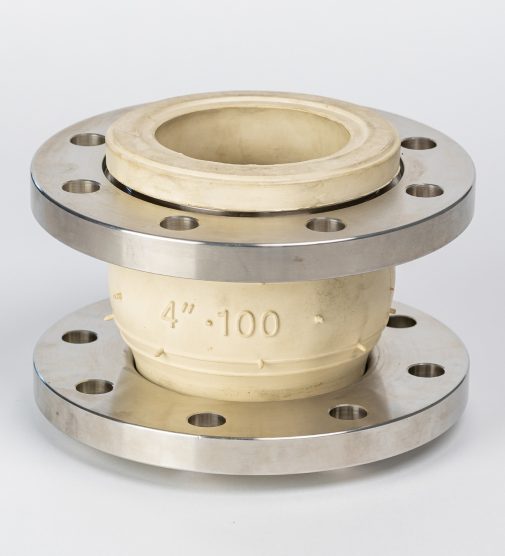

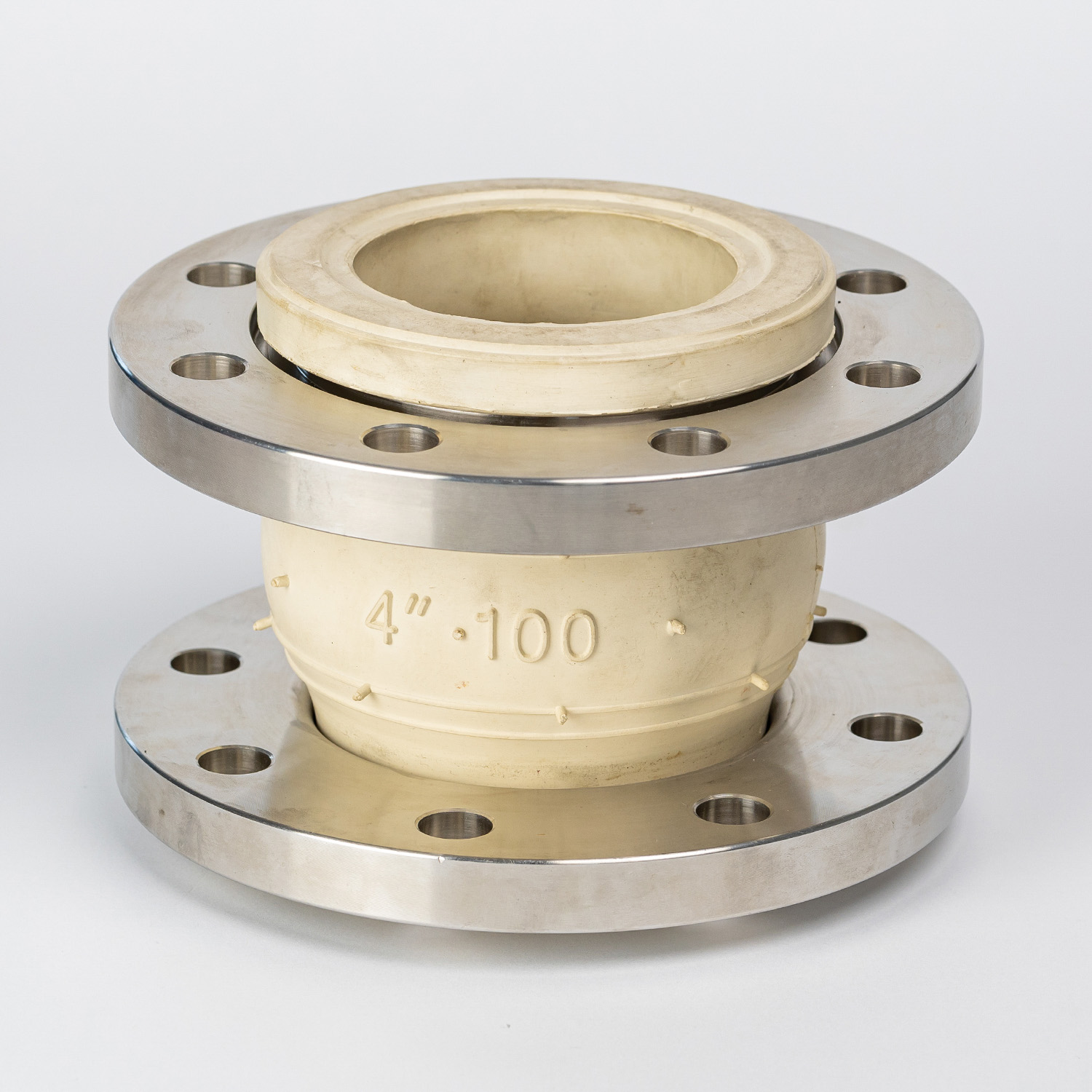

Stainless steel flange connection white sanitary food grade silicone rubber expansion joint

Sizes
DN50 to DN500
Pressure
PN6~PN40
Temperature
-15 ~ 80℃
Flange Standard
DIN, ANSI, JIS etc
Material of Flange
Stainless Steel 304, 316, 321 etc
Material of Rubber
NR, NBR, CR, EPDM, PTFE etc.

Overview

The main body of silicone rubber joints for food production enterprises is made of nylon cord as the reinforcing material, which is vulcanized under heating and pressure conditions. Food grade rubber joints are used in cold water, hot water, compressed air and other pipeline installation environments. With its unique design, novel structure and good sealing performance, it solves the problem of pipeline bursting and damage to pipeline connection equipment caused by thermal expansion and contraction, effectively improving the life cycle of pipelines and the protection of equipment. And it is suitable for special use environment with high sanitary requirement level. Food-grade rubber soft joint, also called rubber soft joint, models from 50-500, the company's rubber soft joint material using food-grade white silica gel, adding food-grade cord inside, made by a special process, the product white ~ tasteless, pressure up to 25 kg is the ideal product for food enterprises pipeline buffer connection, but also according to customer requirements to make shaped size.

Specification

No. Part Material
1 Body Silicone Rubber
2 Inner & Outer Rubber Silicone Rubber
3 Tube body Nylon cord fabric
4 Reinforcing Ring Multi-strand coppering steel wire
5 Flange Cast and forged carbon steel(Q235)、Stainless steel(201、304、316、321)、Plastic(CPVC、PVDF、PPH、UPVC、RPP)

Technical parameters

Item |Medol KXT-1 KXT-2 KXT-3 1. If media is oil, acid or alkali. 2. If special requirements for working temperature 3. If OEM orders with drawings or samples 4. Please Inform us about above when ordering
MpaWoring pressure 1.0(10) 1.6(16) 2.5(25)
Mpa Burst Pressure 2.0(20) 3.0(30) 4.5(45)
Kpa Vacuum 53.3(400) 86.7(650) 100(750)
Applicable Temperature -20℃~+115℃(-30℃~+250℃)-20℃~+115℃(-30℃~+250℃ under special conditions)
Applicable Medium Air, compressed air, water, sea water, oil, acid, alkali, etc.
Note: the materials of main parts are the same with those of KXT type
DN Nominal Diameter (mm) Axial displacement(mm) Length(mm) Haorizontal isplacement (mm) Angular deflection(a1+a2)°
mm inch elongation compression
32 1.25 6 9 95 9 15°
40 1.5 6 10 95 9 15°
50 2 7 10 105 10 15°
65 2.5 7 13 115 11 15°
80 3 8 15 135 12 15°
100 4 10 19 150 13 15°
125 5 12 19 165 13 15°
150 6 12 20 180 14 15°
200 8 16 25 210 22 15°
250 10 16 25 230 22 15°
300 12 16 25 245 22 15°
350 14 16 25 255 22 15°
400 16 16 25 255 22 15°
450 18 16 25 255 22 15°
500 20 16 25 255 22 15°
600 24 16 25 260 22 15°
700 28 16 25 260 22 15°
800 32 16 25 260 22 15°
900 36 16 25 260 22 15°
1000 40 18 26 260 24 15°
1200 48 18 26 260 24 15°
1400 56 20 28 350 26 15°
1600 64 25 35 350 30 10°
1800 72 25 35 350 30 10°
2000 80 25 35 350 30 10°
2200 88 25 35 400 30 10°
2400 96 25 35 400 30 10°
2600 104 25 35 400 30 10°
2800 112 25 35 400 30 10°
3000 120 25 35 400 30 10°
Note: 1. Special requirements can be made according to user drawings. The sphere can be made of nitrile rubber, EPDM, chloroprene rubber and other materials. 2. For suspended water supply, use products above DN200. The pipeline must have a fixed support or fixed bracket, otherwise the product should be installed with an anti-pull-off device. 3. If the user uses a rubber joint, the corresponding flange should be a valve flange.
