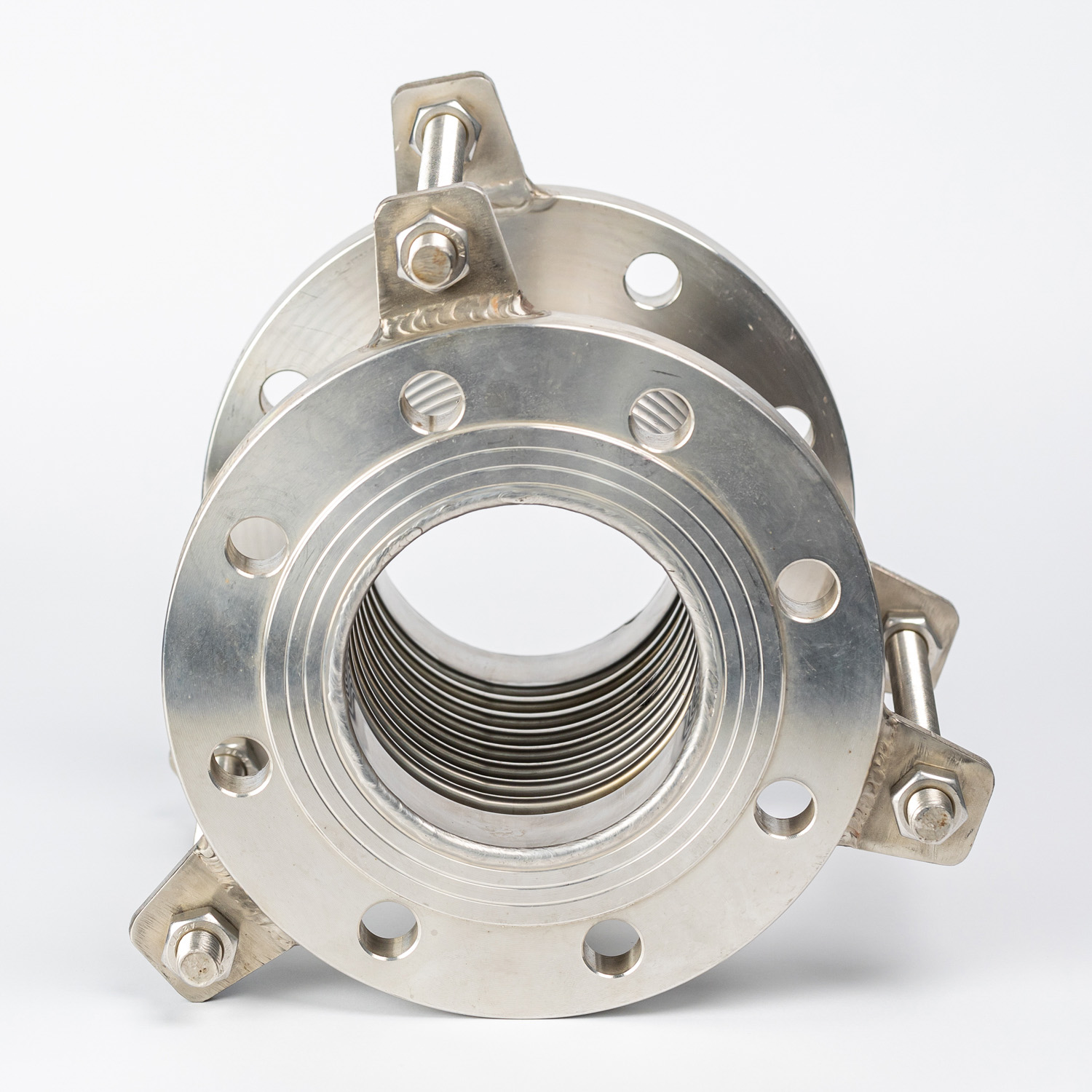

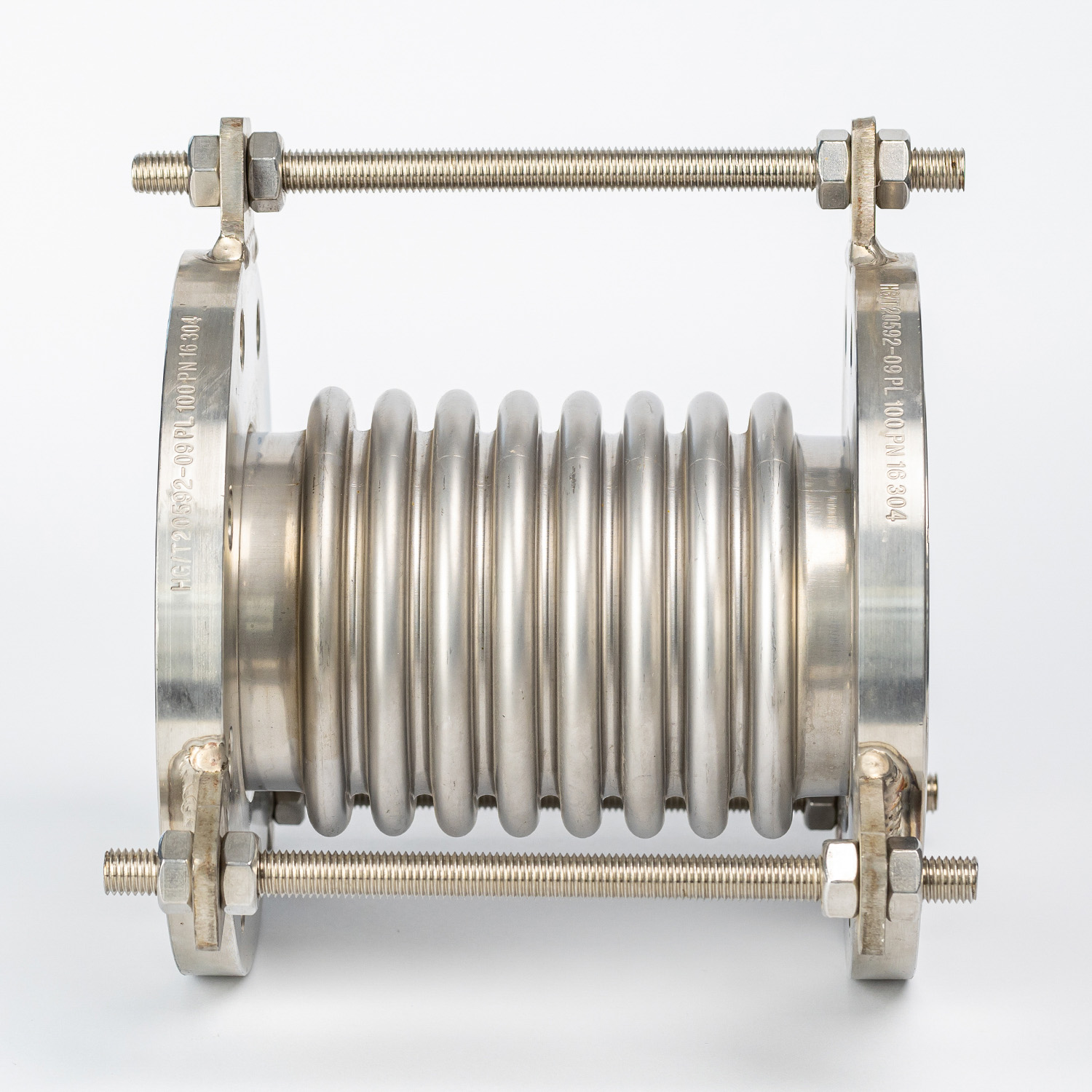

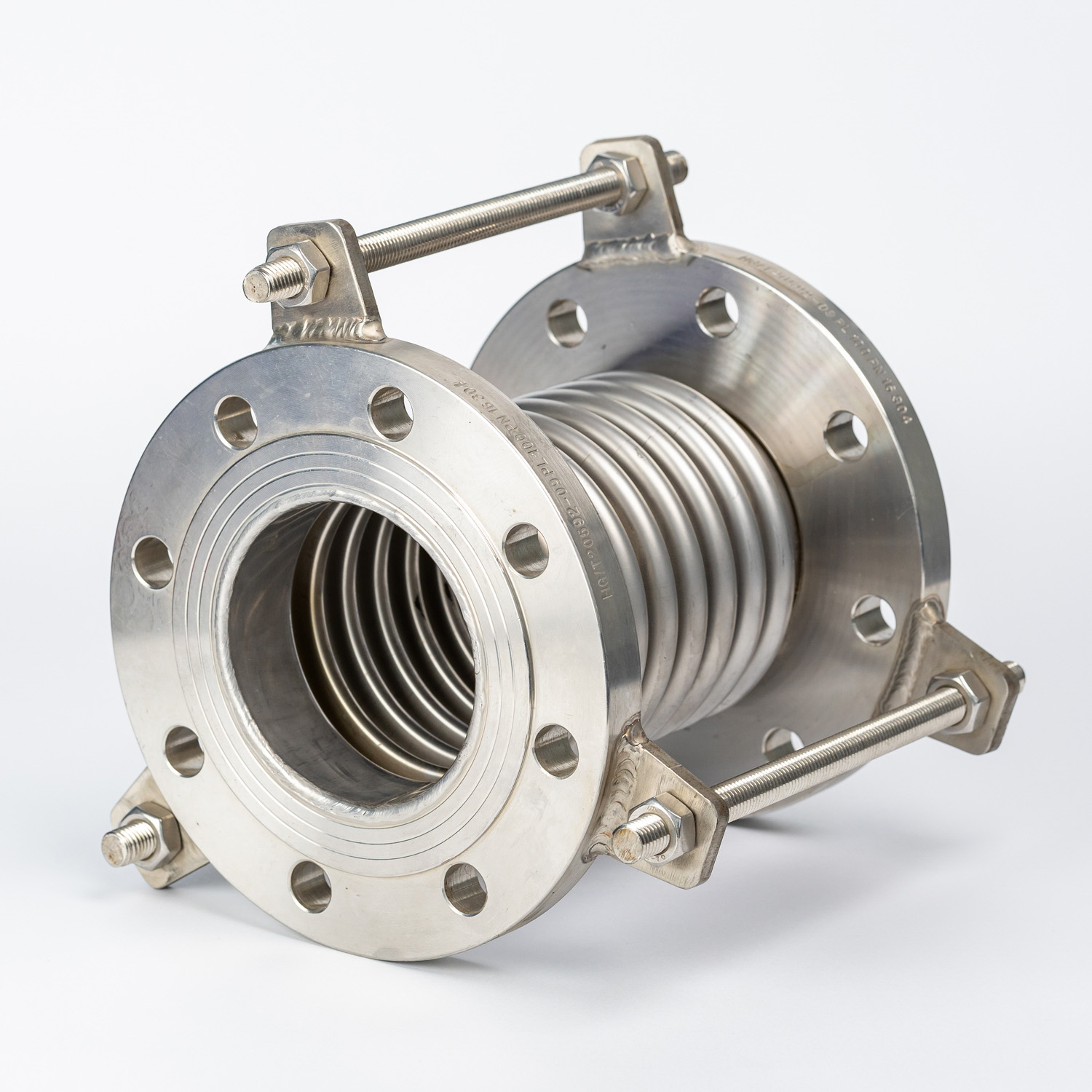

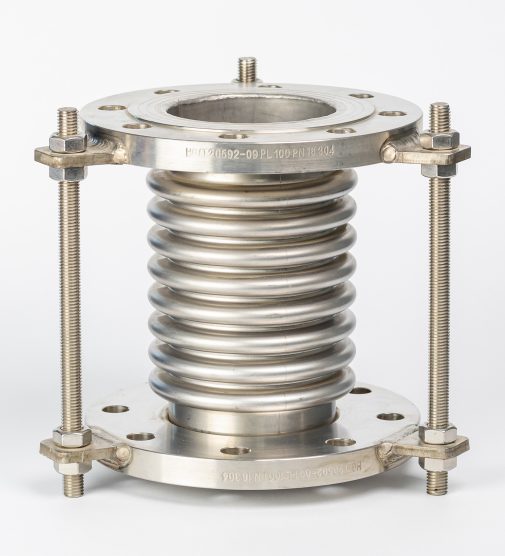

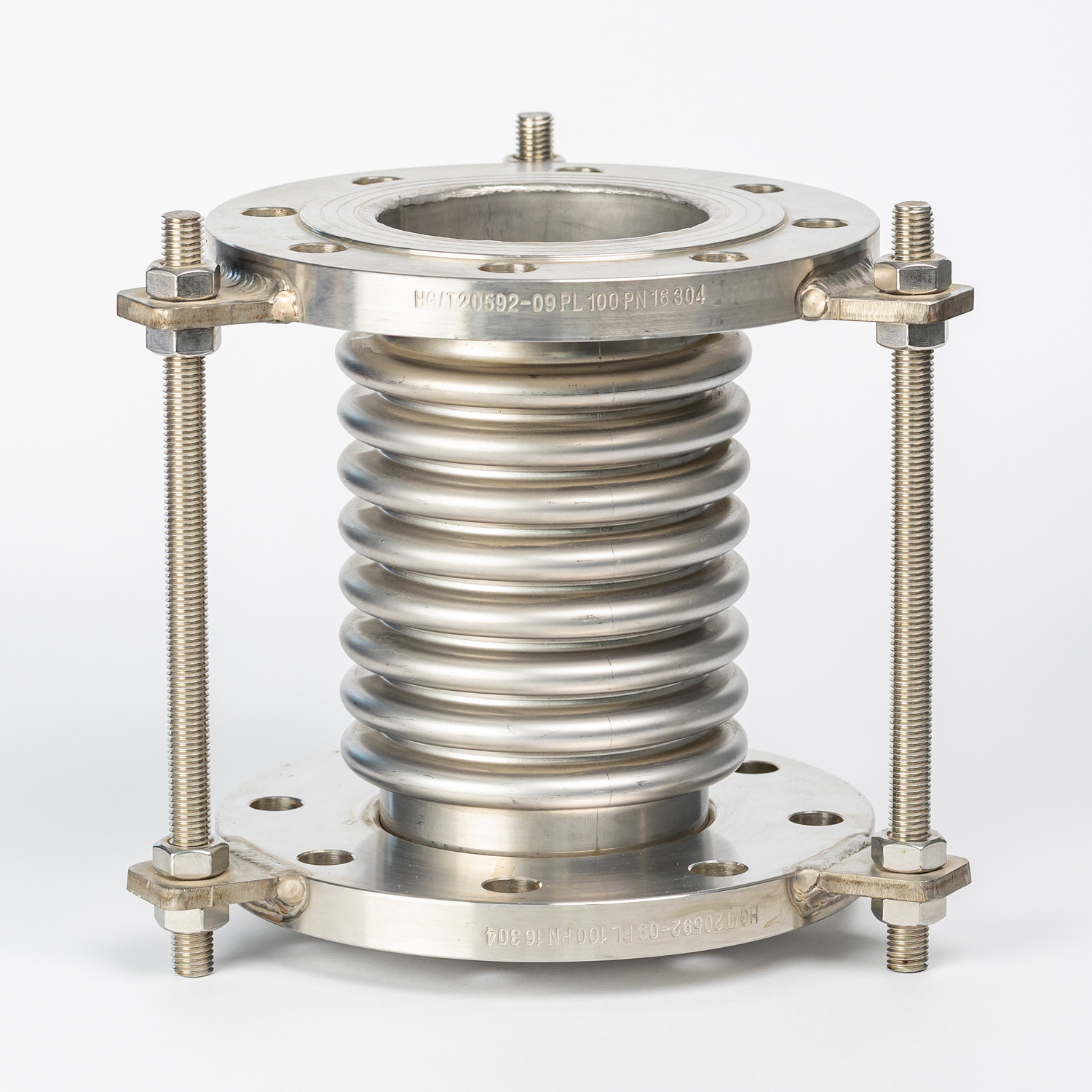

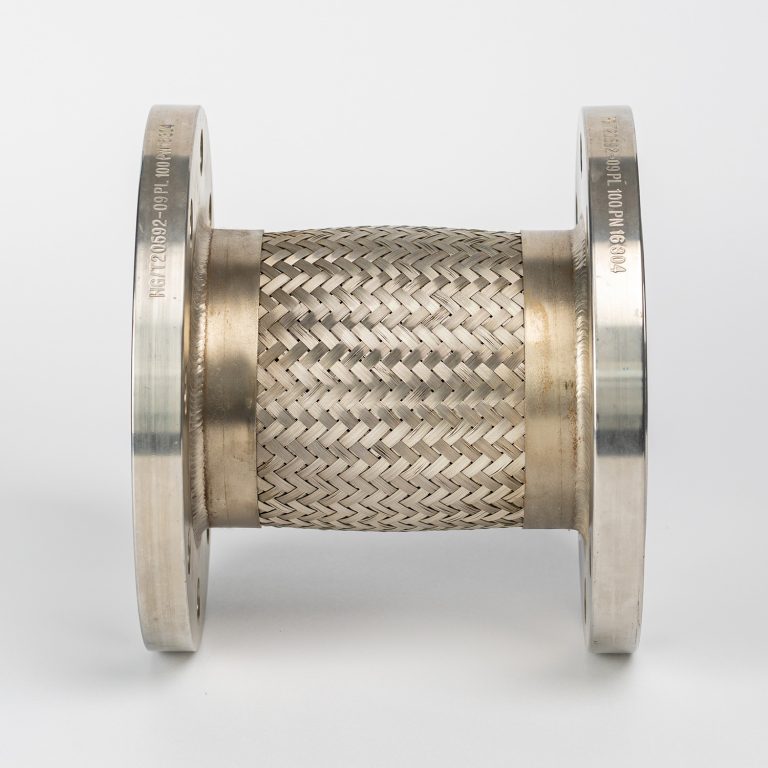

Flange connection general stainless steel ss compensator metal bellow expansion joint
Sizes
DN25 to DN3000
Pressure
PN6~PN25
Temperature
-15 ~ 80℃
Flange Standard
DIN, ANSI, JIS etc
Material of Flange
SS304, 316, Q235 etc.
Catheter Material
SS304, 316, Q235 etc.
Overview
The Bellows Connector metal expansion joint is kept stocked with 150# C/S flanges and tie rods. Although it only comes in one configuration, it is an economical choice, and appropriate for many applications.
It uses vanstone 150# flanges, keeping all the wetted parts stainless steel, and has tie rods standard.
Pipe guides are also available for use with all metal expansion joints.
| Order | Specification(two waves) | Nominal diameter | Compensation amount（mm） | Summit diameter（mm） | Length（mm） |
| 1 | 1.2" | DN32 | 60=±30 | 170 | 245 |
| 2 | 1.5" | DN40 | 60=±30 | 190 | 255 |
| 3 | 2" | DN50 | 60=±30 | 300 | 325 |
| 4 | 2.5" | DN65 | 60=±30 | 320 | 336 |
| 5 | 3" | DN 80 | 60=±30 | 360 | 340 |
| 6 | 4" | DN100 | 60=±30 | 400 | 350 |
| 7 | 5" | DN125 | 60=±30 | 433 | 360 |
| 8 | 6" | DN150 | 60=±30 | 477 | 385 |
| 9 | 8" | DN200 | 60=±30 | 527 | 390 |
| 10 | 10" | DN250 | 60=±30 | 579 | 420 |
| 11 | 12" | DN300 | 60=±30 | 635 | 435 |
| 12 | 14" | DN350 | 60=±30 | 635 | 440 |
| 13 | 16" | DN400 | 60=±30 | 760 | 460 |
| 14 | 18" | DN450 | 60=±30 | 810 | 460 |
| 15 | 20" | DN500 | 60=±30 | 860 | 460 |
| 16 | 2" four waves | DN50 | 120=±60 | 300 | 590 |
