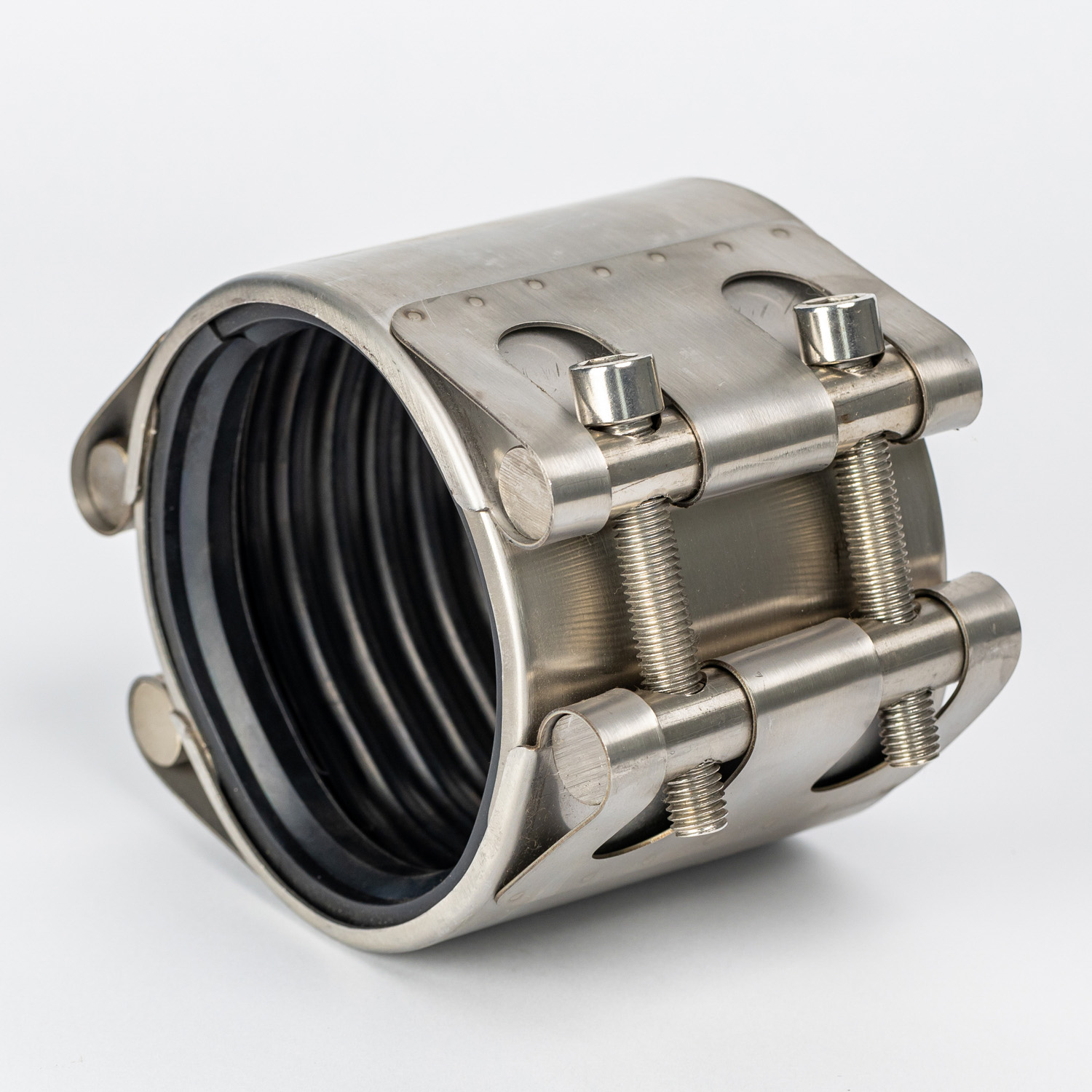

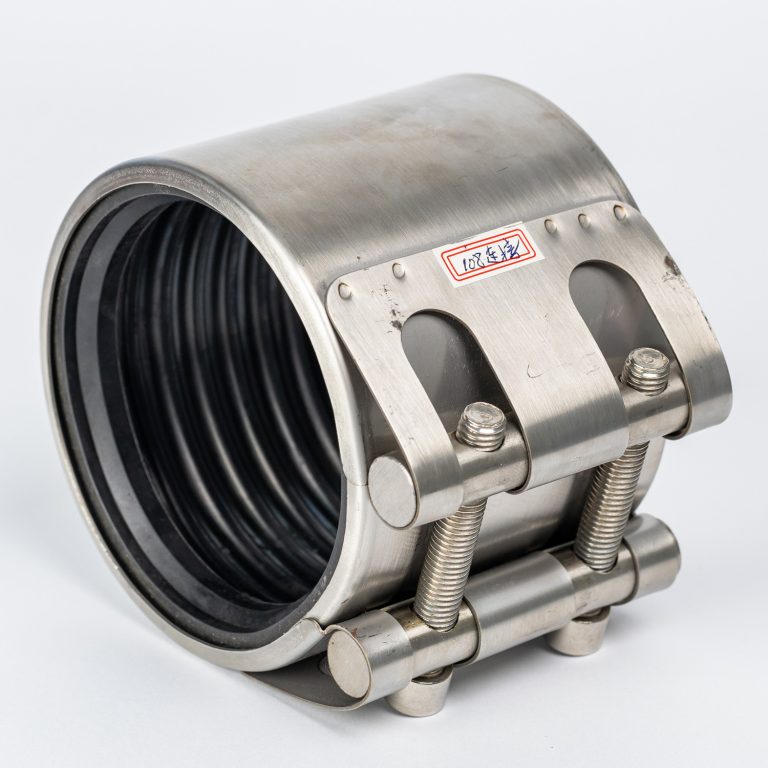

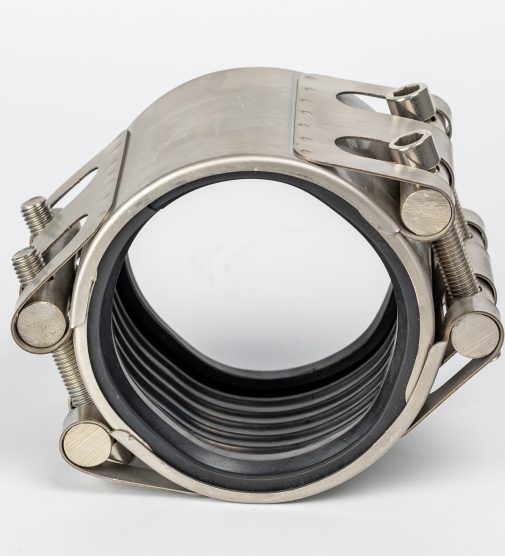

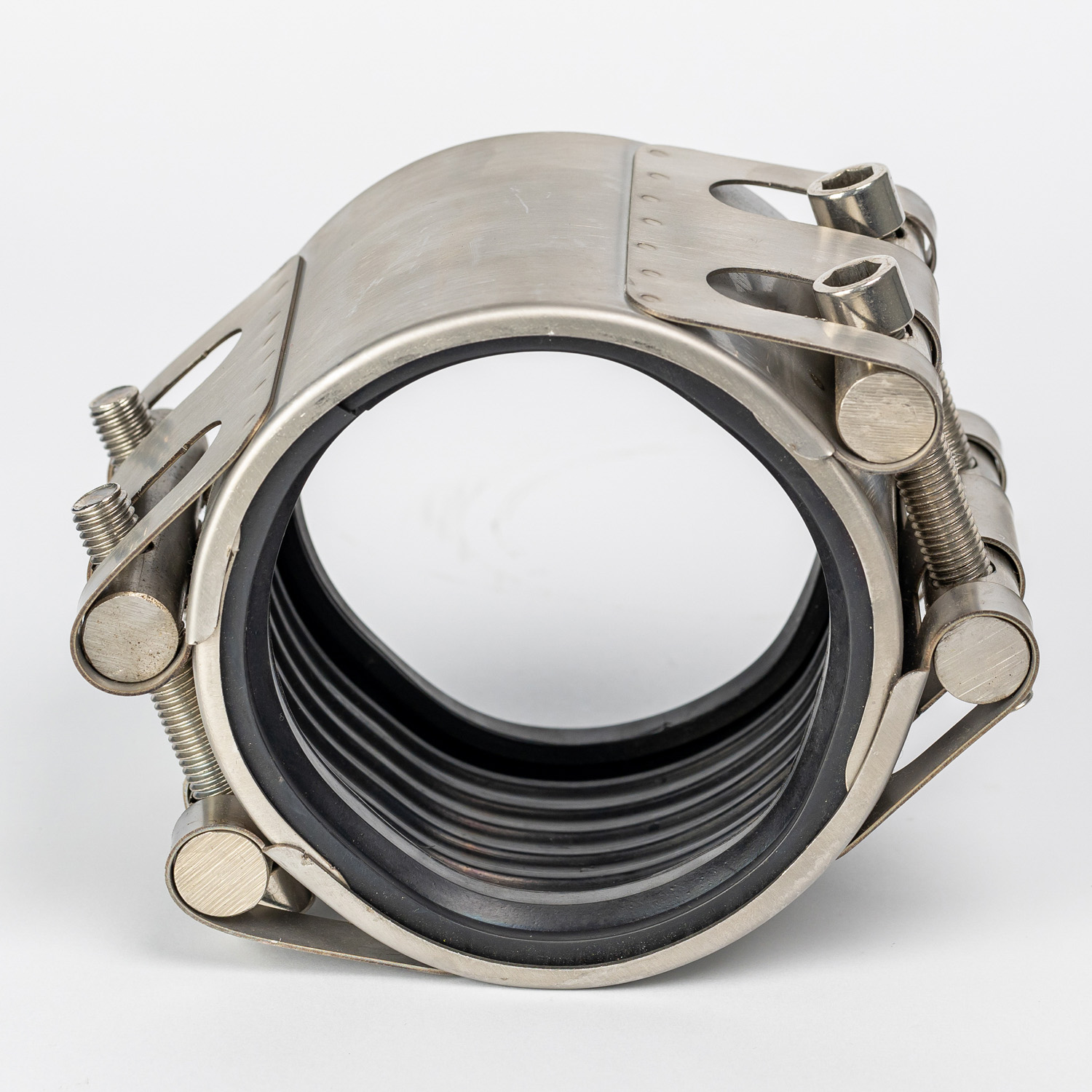

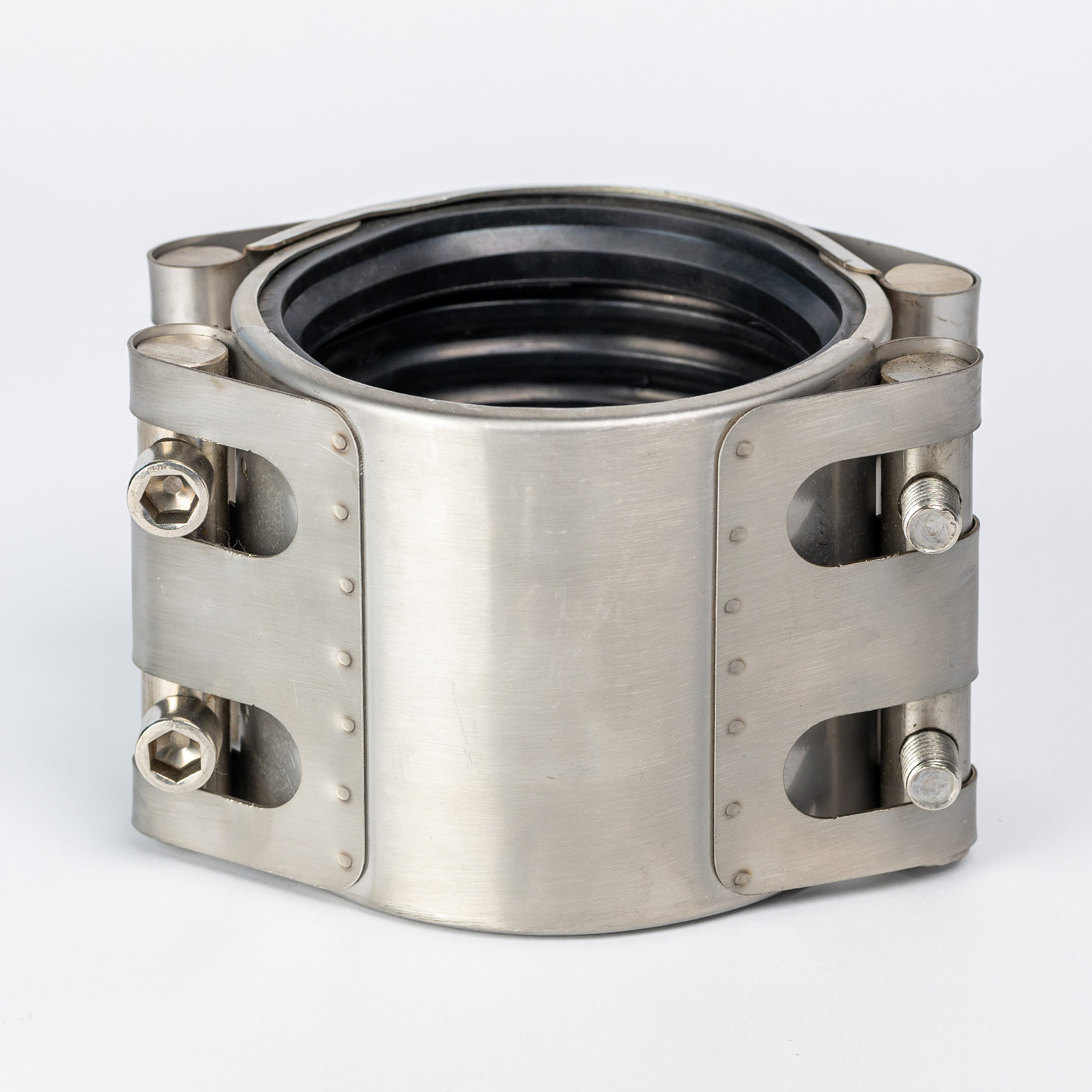

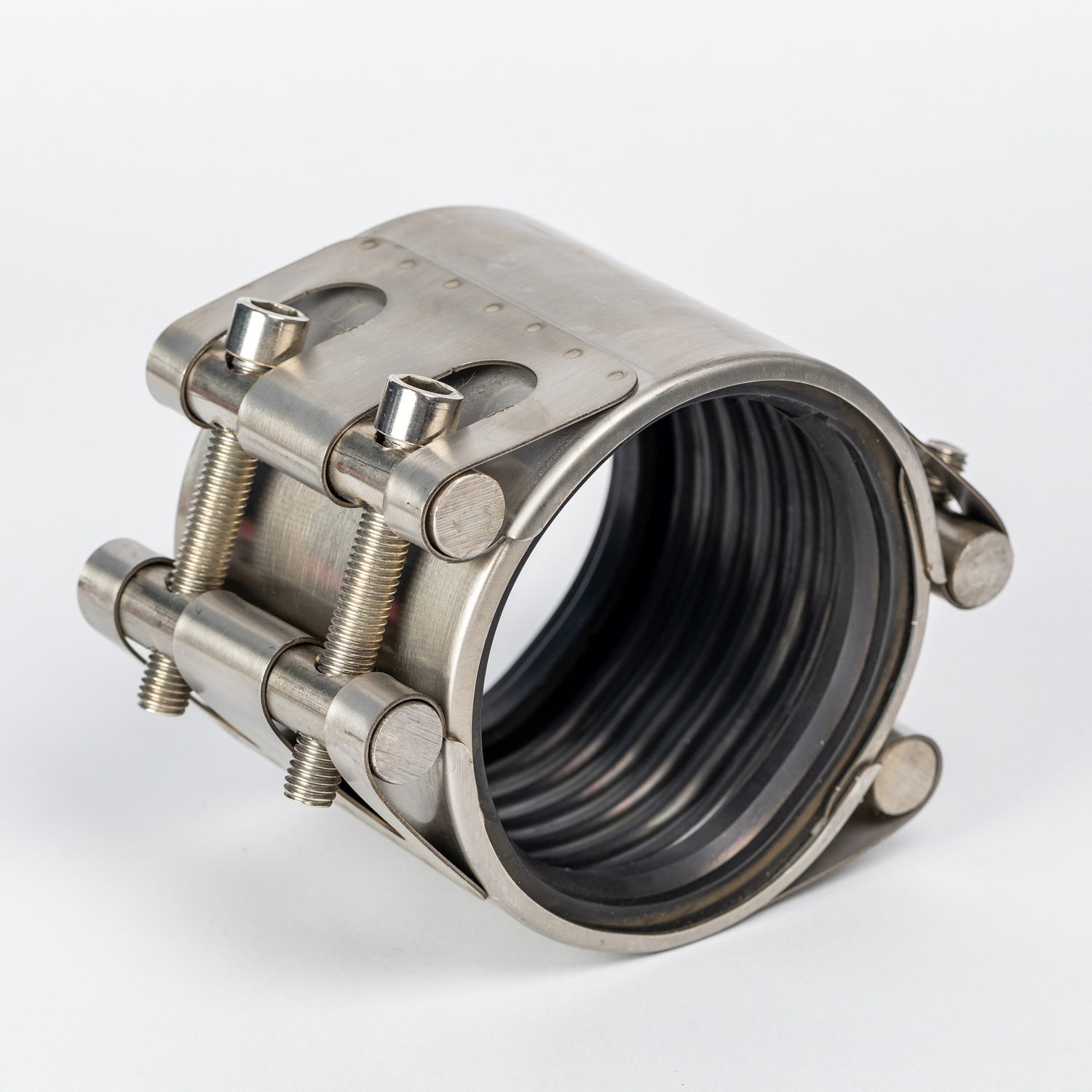

Dual card folding pipe connector pipe repairer
Sizes
DN25~DN500
Pressure
PN6~PN25
Temperature
-15 ~ 80℃
Gasket Material
EPDM , neoprene rubber, NBR, Viton, etc.
Casing Material
Stainless Steel (301 , 304 and 316L available)
Overview
Leaking water pipes can cause serious problems. The damaged pipes must be repaired as soon and safe as possible, but also durably to prevent waterloss. LZ JOINT has avariety of repair clamps to fix a variety of pipes. From snap clamps to joint leak clamps and more, our repair clamps are made to repair holes or breaks in water mains.
Can be used as a repair or for connecting of steel, ductile iron, PVC, HDPE and FRP pipes. Suitable for water, sewer, gas, and hydrocarbons.
| Model | Diameter(mm) | PipeOD(mm) | Length | Tube pitch | Pressure (M) | Preload (Nm) | ||
| Ordinary type | Lengthening type | Ordinary type | Lengthening type | |||||
| 25 | 34 | 33-35 | 60 | 100 | 5 | 5 | 2.5 | 50-80 |
| 32 | 42 | 42-44 | 60 | 100 | 5 | 10 | 2.5 | 50-100 |
| 40 | 48.6 | 47-49 | 60 | 100 | 5 | 10 | 2.5 | 50-100 |
| 50 | 60 | 59-62 | 80 | 140 | 8 | 15 | 2.0 | 100-150 |
| 65 | 76 | 75-78 | 80 | 140 | 10 | 25 | 2.0 | 100-150 |
| 80 | 89 | 88-92 | 100 | 205 | 10 | 25 | 2.0 | 150-200 |
| 100 | 114 | 108-116 | 100 | 205 | 10 | 25 | 1.6 | 150-200 |
| 125 | 140 | 137-142 | 110 | 205 | 10 | 30 | 1.6 | 250-300 |
| 150 | 159 | 157-162 | 110 | 205 | 10 | 30 | 1.6 | 250-300 |
| 200 | 219 | 217-221 | 140 | 255 | 10 | 30 | 1.2 | 400-800 |
| 250 | 273 | 271-275 | 140 | 255 | 10 | 30 | 1.2 | 400-800 |
| 300 | 325 | 323-327 | 140 | 255 | 10 | 30 | 1.0 | 400-800 |
| 350 | 377 | 375-379 | 155 | 255 | 10 | 30 | 1.0 | 800-1200 |
| 400 | 426 | 424-428 | 155 | 255 | 10 | 30 | 0.8 | 800-1200 |
| 450 | 480 | 475-482 | 155 | 255 | 10 | 30 | 0.8 | 800-1200 |
| 500 | 530 | 526-533 | 155 | 255 | 10 | 30 | 0.8 | 1200-1500 |
